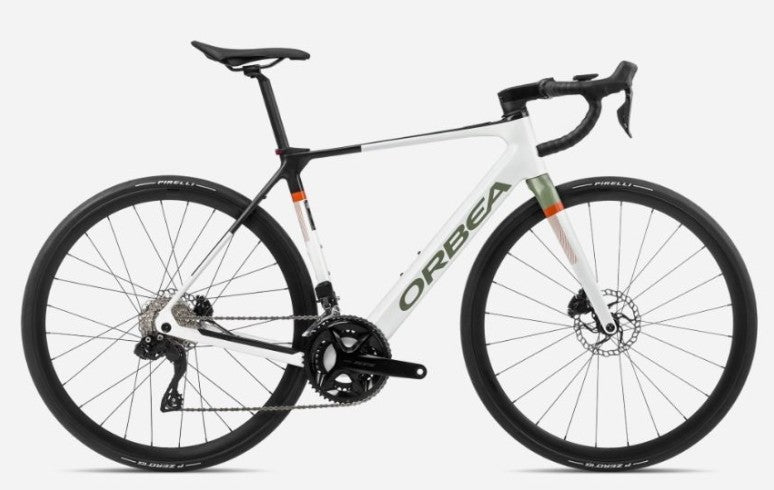

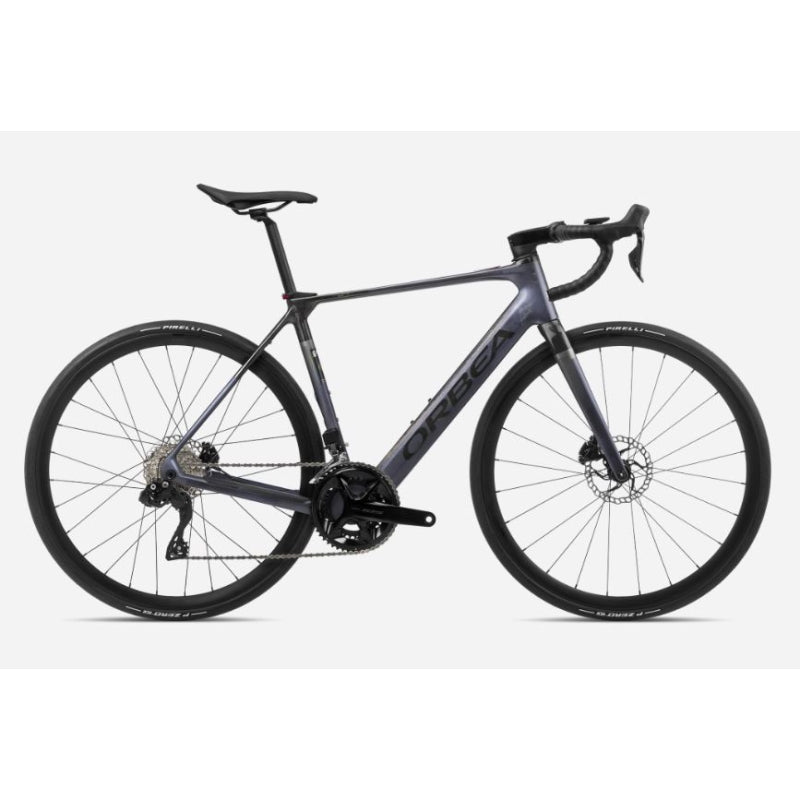

Orbea Gain M30 2024 (INSTORE NOW)

Orbea Gain M30 2024 (INSTORE NOW)

Colour
Size
Regular price $10,199.00 AUD
Sale price $10,199.00 AUD Regular price $12,599.00 AUD
Sale
Shipping calculated at checkout.

In-store pick up only.

View full details
EBikes Feature
THE MANY FACES OF JOY
Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun. Gain brings enough power to turn gravity down a bit but not dominate the ride or remove the satisfaction. The natural assistance blends invisibly into the background, leaving you feeling like you are fitter than ever. This isn't about riding faster, it isn't even about riding further, this is just about having more fun each and every time you ride.
GAIN CARBON OMR CARBON FRAME
MOTOR TUNED MAHLE X20 (55NM)
CAPABLE UP TO 35MM TYRES
RANGE UP TO 4000M RANGE
BATTERY 350WH
THE PHILOSOPHY OF GAIN
Enough Power is a concept which is central to our vision of e-road. A completely integrated system which brings together power, range and interface to deliver a natural ride with nearly silent, unobtrusive assistance.
SPECIFICATIONS
Fork: Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Frame: Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Headset: FSA 1-1/2" Integrated Aluminium Cup
Rear Hub: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Front Hub: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Wheel Size: 29.0
Brake: Shimano R7170 Hydraulic Disc
Chain / Belt: Shimano M7100
Tires: Pirelli P ZERO Race SmartEVO TLR 700x30c
Saddle: Fizik Aliante R5
Wheels: Alloy, Tubeless, 700c, 21c
Cassette: Shimano 105 R7100 11-34t 12-Speed
Crankset: Shimano 105 R7100 34x50t
Shifters: Shimano R7120
Seat Post: Carbon, 27.2mm, Setback 20
Rear Derailleur: Shimano 105 R7100
Front Derailleur: Shimano 105 R7100
Motor: Mahle motor hub X20, ALC
Battery: Mahle iX350 36V 353Wh
Charger: Mahle Active Charger up to 4A
Display: Mahle Pulsar One monochrome ANT+ LEV
Front Light: Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
