Sku :
132622
Regular price
$12,800.00 AUD
Sale price
$12,800.00 AUD
Regular price
Unit price
per
Shipping calculated at checkout.

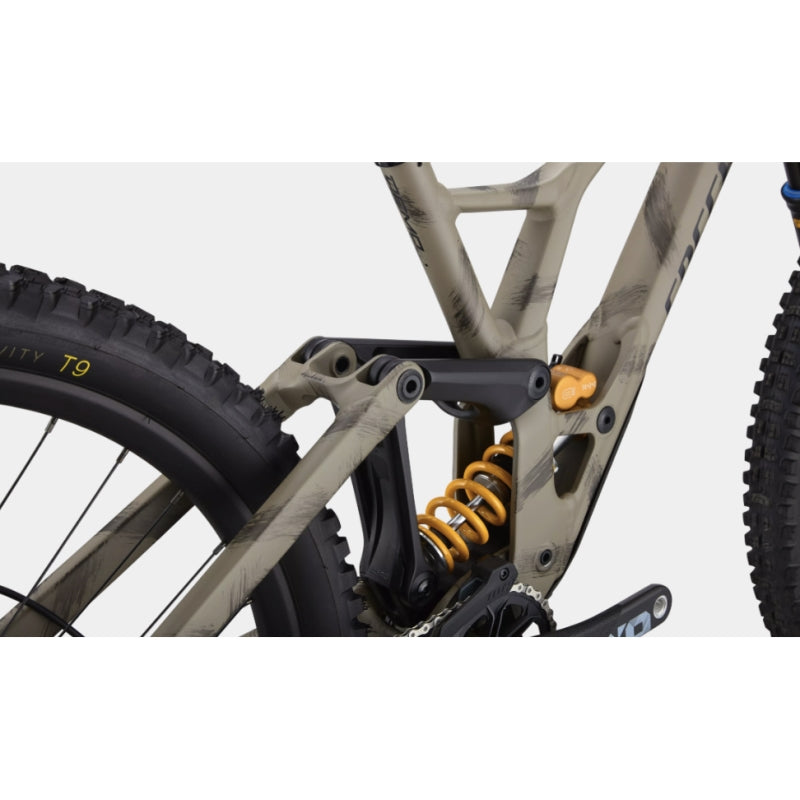

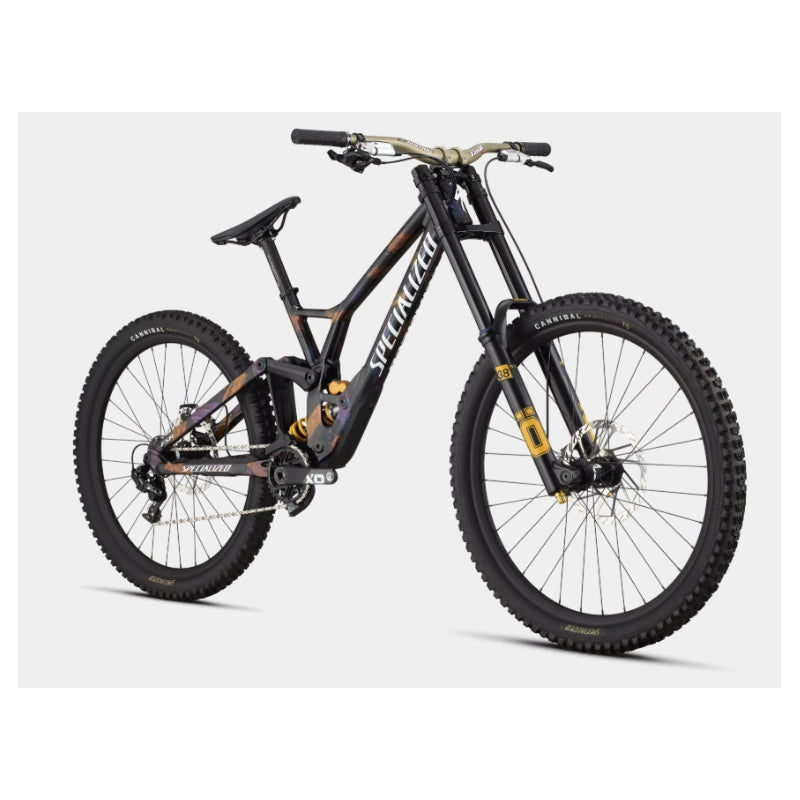

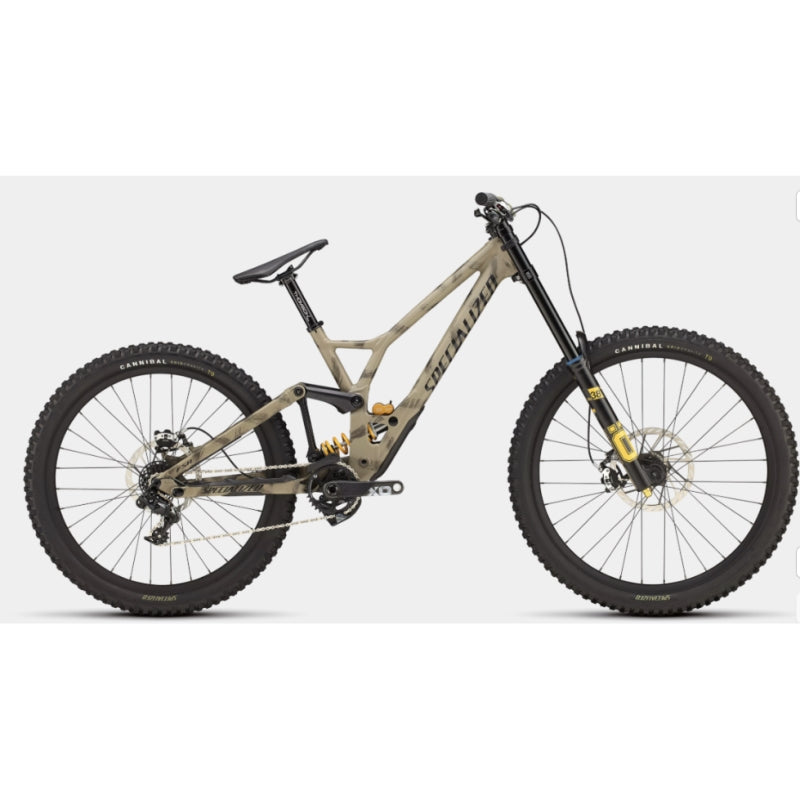

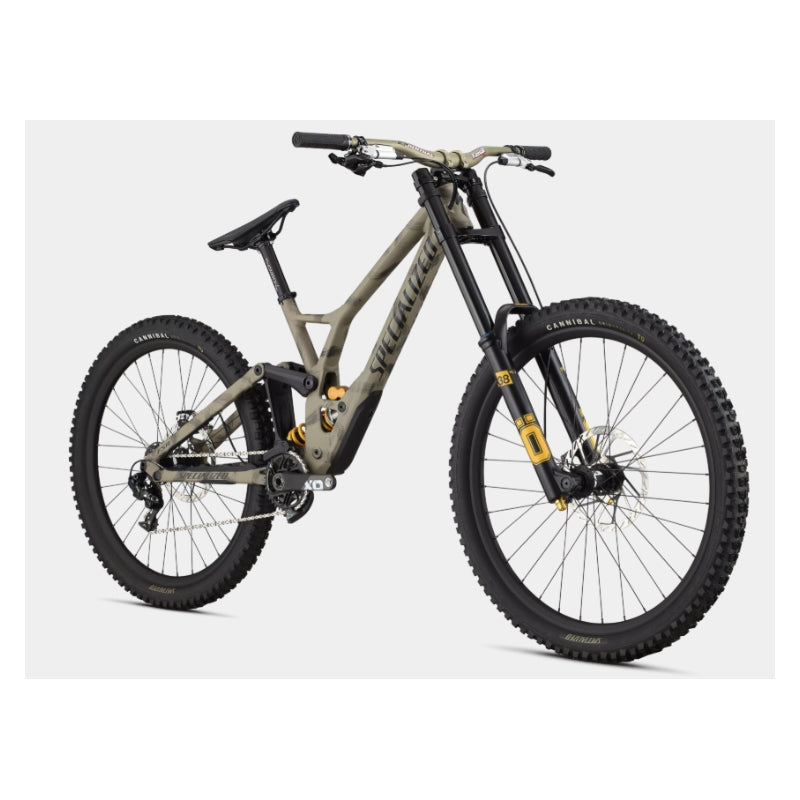

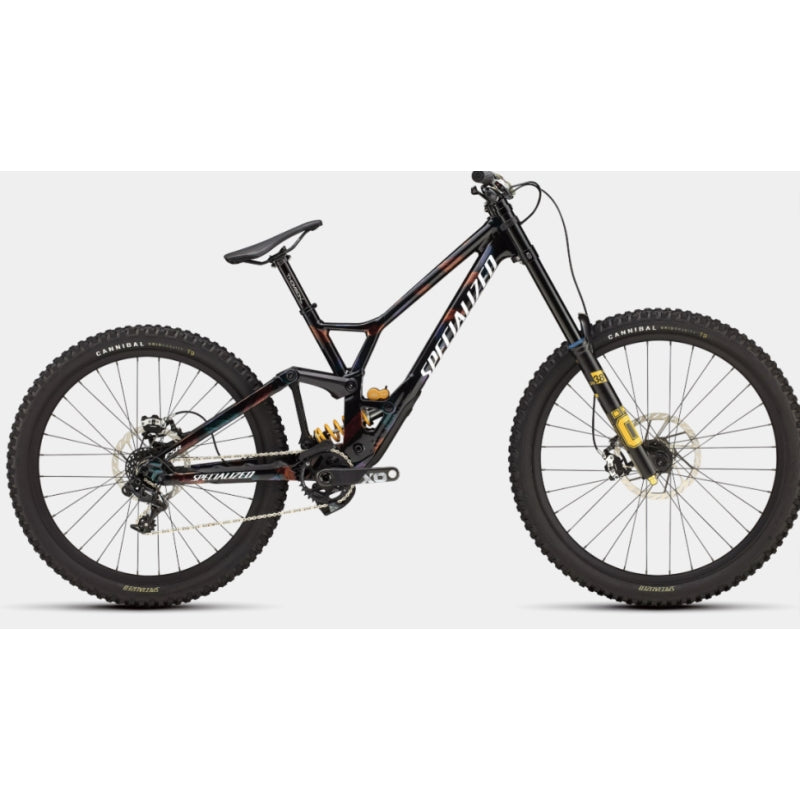

DEMO RACE
All-out speed has always been the Demo's target, and with the Demo Race, it's no different. Introducing a new flexible wheel-size frame design that allows riders to take advantage of a 29-inch front wheel and a 27.5-inch rear wheel, it's a special blend that's long been tested by World Champ Loïc Bruni looking for the perfect balance of traction and maneuverability, but only just green-lighted by the UCI this past year. Not that it stopped the Demo Race from racking up both the Downhill World Championship and overall World Cup titles in its very first season...
Technical Specifications
Frameset
Frame
M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Seat Binder
Alloy, 34.9mm
Suspension
Fork
Öhlins DH38 M.1 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel
Rear Shock
Öhlins TTX22M.2 Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75
Brakes
Front Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm
Rear Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm
Drivetrain
Bottom Bracket
SRAM DUB, 83mm
Cassette
SRAM X01 DH, 7-speed, 10-24t
Rear Derailleur
SRAM X01 DH, 7-speed, trigger
Crankset
SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm
Shift Levers
SRAM X01 DH, trigger, 7-speed
Chain
Sram PC1130 w/ Powerlink, 11-speed
Wheels & tires
Rims
Roval Traverse Alloy 29" / 27.5", 32h alloy rim, 28mm inner rim width
Front Hub
DT Swiss 350 hub, 20x110mm
Front Tire
Cannibal, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.4"
Rear Tire
Cannibal, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 27.5x2.4"
Rear Hub
DT Swiss 350 hub, 12x148mm
Spokes
Sapim D-Light
Inner Tubes
Standard, Presta
Cockpit
Saddle
Body Geometry Henge DH, hollow titanium rails, 130mm
Grips
Deity Lockjaw

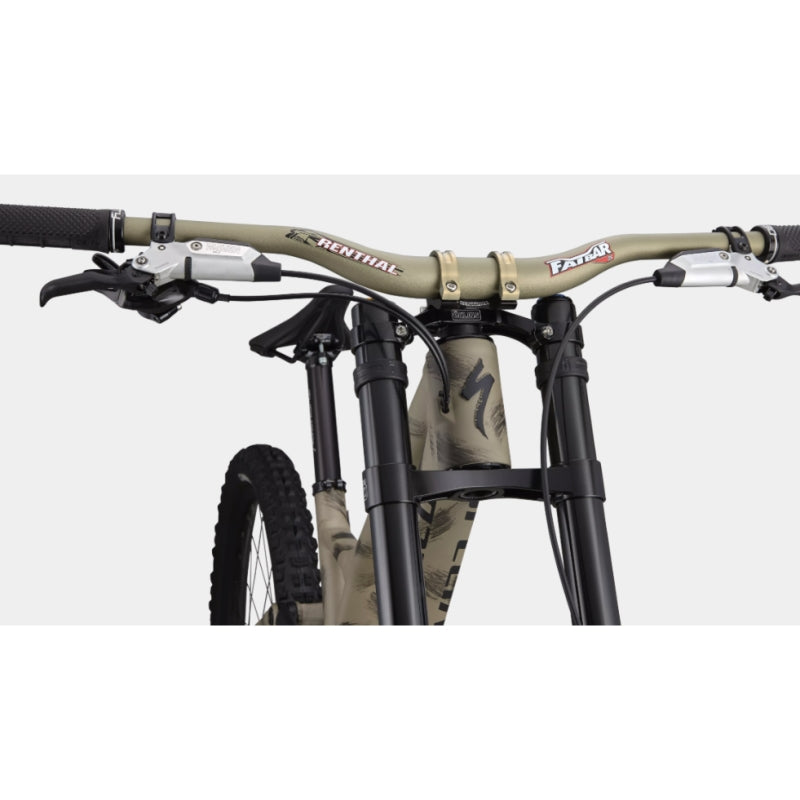

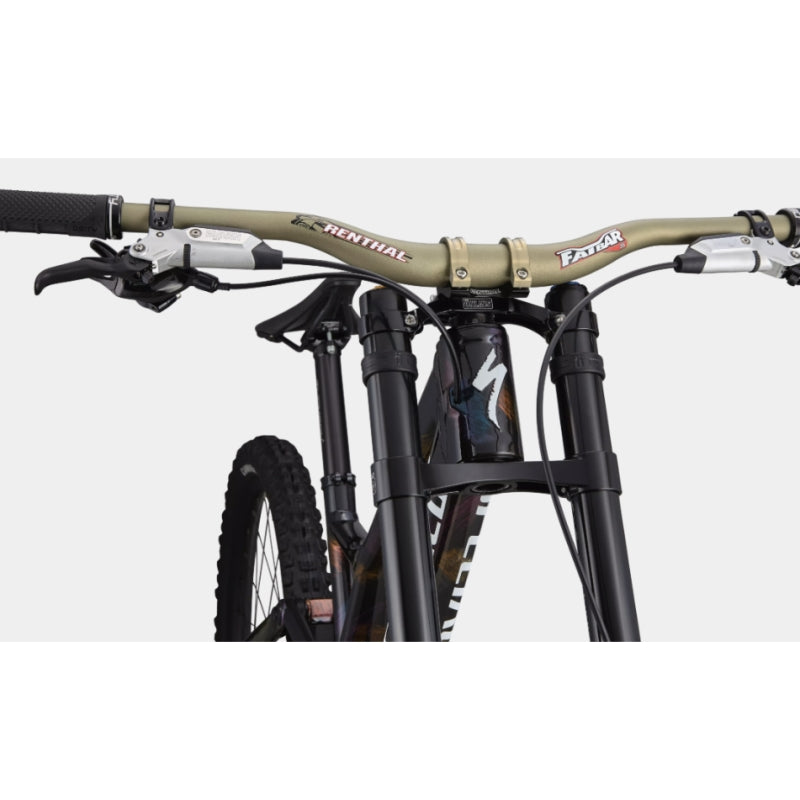

Handlebars
Renthal Fatbar 35, 5-degree upsweep, 7-degree backsweep, 30mm rise, 800mm, 35.0mm
Stem
Renthal Integra 35mm Direct Mount Stem, 45mm length
SeatPost
Thomson, alloy, straight, 12-degree clamp
Product details
Product ID
221385
Weight
Weight
17.62kg (38 lb, 13.5 oz)
Weight Size
S3
