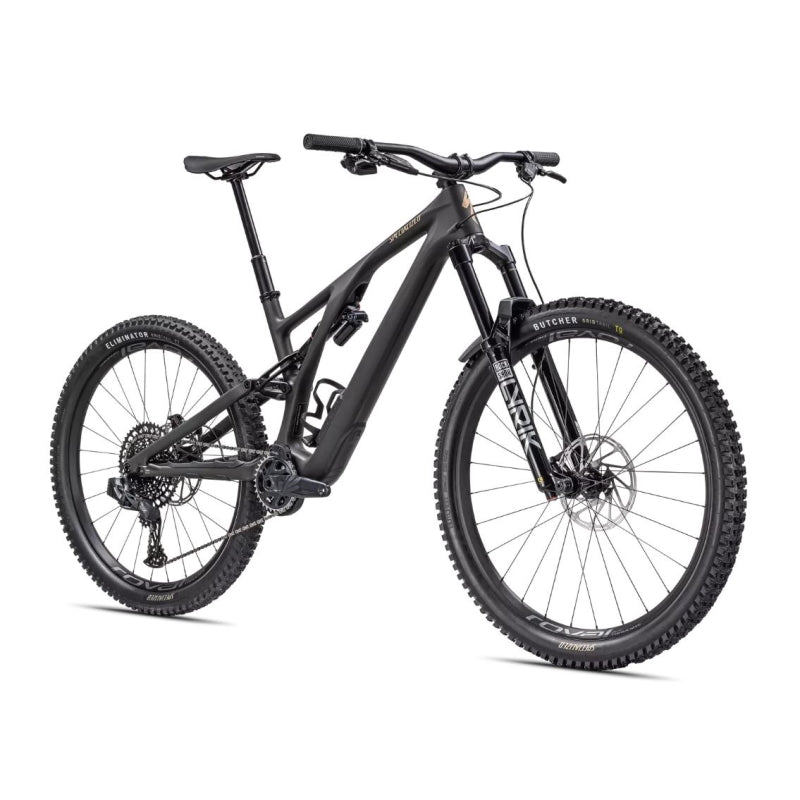

Specialized Stumpjumper Evo Ltd

What do you get when you pair a 29-inch front wheel with a 27.5-inch rear wheel? The Stumpjumper EVO LTD, that's what. With all of the traction and handling benefits of a 29er, but with a smaller, more maneuverable rear wheel, this mullet setup suits a more jibby, playful style. It's right at home at the bike park, and is a total blast to cut loose with on the trail.
To enhance its 29/27.5' get-rowdy wheel setup, the Stumpjumper EVO LTD features a RockShox Super Deluxe Ultimate shock out back, paired with a RockShox Lyrik Ultimate fork. Top it off with 30mm-wide alloy wheels and a SRAM Eagle drivetrain, and the LTD is ready to party.
FRAMESET
Seat Binder Alloy, 38.6mm
Frame FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5" Trail Geometry, SWAT Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
SUSPENSION
Rear Shock Rock Shox Super Deluxe Ultimate, Rx Trail Tune,RC2T Damper, Hydraulic Bottom Out control , S1:210x50mm, S2-S6:210x55mm
Fork RockShox Lyrik Ultimate, Charger 3 RC2 W/ButterCups, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel
COCKPIT
Stem Alloy Trail Stem, 35mm bar bore
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips Deity Grips
SeatPost OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)
Handlebars Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
BRAKES
Rear Brake SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Front Brake SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Shift Levers SRAM GX Eagle AXS Controller
Rear Derailleur SRAM GX Eagle AXS, w/ battery cover
Crankset SRAM GX Eagle Alloy, DUB, 165/170/175mm, 32t
Chain SRAM GX Eagle, 12-speed
Cassette Sram XG-1275, 12-speed, 10-52t
Chainrings 32T
WHEELS & TIRES
Front Tire Butcher, GRID TRAIL casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"
Spokes DT Swiss Competition Race
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 27.5 x 2.3"
Rear Hub Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
Front Hub Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Inner Tubes Standard, Presta Valve
WEIGHT
Weight 14.54kg (32 lb, .9 oz)
Weight Size S4
