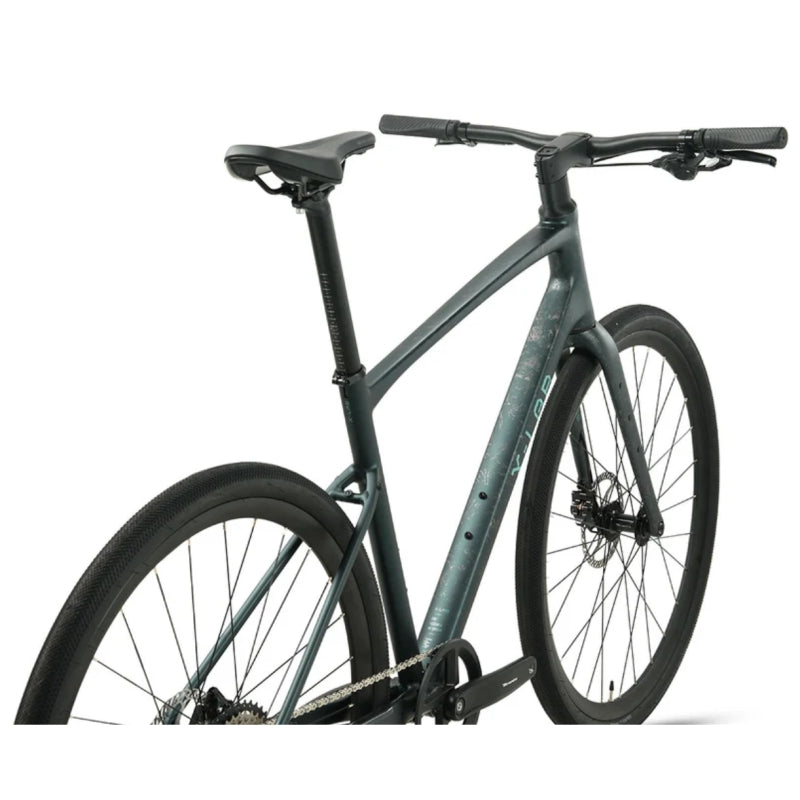

X-Lab SP3 Flat Bar Commuter 2027

X-Lab SP3 Flat Bar Commuter 2027 is a flat-bar fitness and hybrid bike for commuting, fitness and weekend rides. It is built around an alloy frame. Claimed weight is 10.71 kg. Available in sizes S–XL. Every bike is assembled by the Pedalheads workshop, and we can set yours up with a professional bike fit at our Brendale or Albion store in Brisbane.

X-Lab SP3 Urban Flat Bar Bike
$1,299.95
Tax included. Shipping calculated at checkout.
Expected arrival in SEPTEMBER 2026 - currently taking pre-orders prior to arrival.
The X-Lab SP3 is a lightweight aluminium urban flat-bar bike built for confident, comfortable city riding and fitness miles. A full-carbon fork smooths the road, while Shimano Cues 10-speed shifting and hydraulic disc brakes keep things fast and low-maintenance.
Highlights:
- Lightweight XDS aluminium frame with full carbon fork
- Shimano Cues 10-speed drivetrain
- Branta 2-piston hydraulic disc brakes, 160/160mm
- Fast 700x40C tyres, clearance to 45c with fenders
- 10.71 kg (size L)
Color:Morning Moss
Morning Moss
S,M,L,XL
FRAMESET
Frame: XDS Aluminium
Fork: XDS Carbon, 100x12mm Thru-axle

DRIVETRAIN
Shifter: Shimano Cues SL-U6000-10R, 10-speed
Rear Derailleur: Shimano Cues RD-U6020, 10-speed
Crank: Branta Alloy Square Taper, 170mm, 40T, Narrow-Wide
Cassette: Shimano CS-M6010C, 11-40T, 10-speed
Chain: TEC GT-Glide
Bottom Bracket: Square Taper

BRAKES
Brakes: Branta C515, 2-piston hydraulic disc, 3-finger lever
Rotors: Branta AR14, 160mm front / 160mm rear

WHEELS
Wheelset: Branta A27, Aluminium Rim
Tyres: Branta R240, 700x40C, 30 TPI
Wheel Size: 700c
Max Tyre Clearance: 700x45c (with full-wrap fender)

COMPONENTS
Handlebar: Branta X6 Aluminium, 25mm rise, 9degree backsweep
Stem: Branta Aluminium, 90mm, 0degree rise
Seatpost: XDS Aluminium, 31.6mm, 400mm, 12mm setback
Saddle: Branta SRX+

WEIGHT
Weight: 10.71 kg (Size L)

Please note: Specifications are subject to change without notice.
