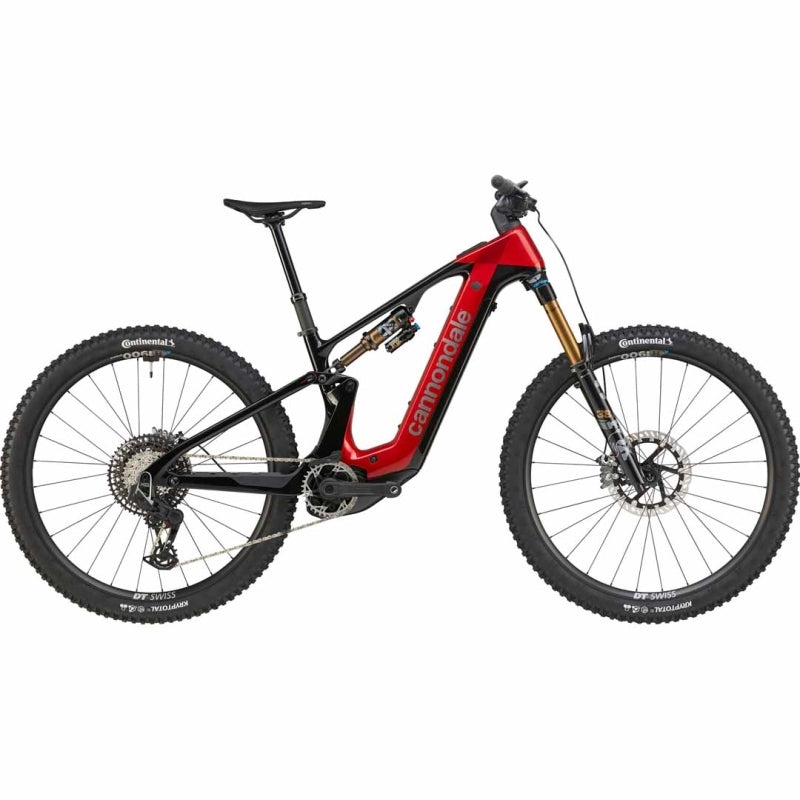

Cannondale 2026 29 Moterra Carbon 1

2026 MOTERRA CARBON 1 29
More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further-faster.
Model Description
What it's for
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A lightweight carbon fiber frame - Proportional Response size-specific suspension, tuned for specifically for the air shock and 29' wheels
- Bosch's most powerful system - Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Top of the line Fox Factory suspension - 160mm Float Factory 38 fork and Float X Factory piggyback shock
- Rugged DT Swiss H 1900 Spline EMTB Wheelset - Built to survive - 30mm inner width, 370 hubs with durable Ratchet LN internals
- Wireless electronic shifting from a blended SRAM Eagle XO/GX AXS 12-speed group
- Powerful, controllable stopping from Magura's MT7 4-piston stoppers with 220/203mm rotors
SPECIFICATIONS
Frame Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5' - 1.8' tapered headtube, 40mm two-bolt kickstand compatible
Fork Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Rear Shock Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230x62.5mm
Rims DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
Hubs(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
Spokes DT Swiss Competition, straight pull
Tires(F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Pedal Not Included
Cranke*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Bottom BracketNull
Chain SRAM GX T-Type, 12-speed
Rear Cogs SRAM GX Eagle T-Type, 10-52, 12-speed
Front Derailleur Null
Rear Derailleur SRAM XO Eagle AXS, T-Type
Shifters SRAM Eagle AXS T-Type Pod Controller
Handlebar HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8degree sweep, 5degree rise, 780mm
Grips Cannondale TaperRidge
Stem Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0degree
Headset Acros ICR, 1.5" to 1.8", sealed bearings
Brakes Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors
Brake Lever sMagura MT7 hydraulic disc
E-bike Display 0
E-Bike BatteryBosch PowerTube, 800Wh
E-bike Charger 0
E-bike Drive Unit 0
Saddle Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Accessories & Extras Tubeless Valve Stems, Bosch PowerMore range extender compatible
