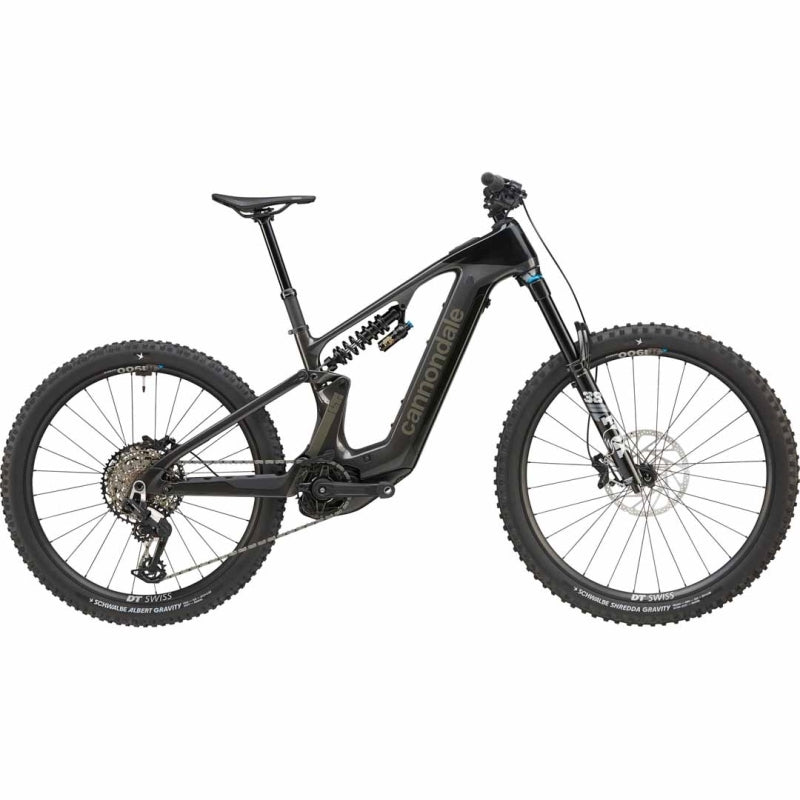

Cannondale 2026 29/27.5 Moterra 1 Carbon LT

2026 MOTERRA CARBON LT
Point and Play
What it's for
Getting after it on the wilder side. Steep climbs, fast descents, big hits, and endless laps
Highlights
- A light yet burly carbon fiber frame - Proportional Response size-specific kinematics, tuned for specifically for the coil shock and mullet wheels
- Bosch's most powerful system - Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Hard-hitting Fox Suspension - 170mm Float Performance 38 fork and supple DHX Performance coil piggyback shock
- Rugged DT Swiss H 1900 Spline EMTB Wheelset - Built to survive - 30mm inner width, 370 hubs with durable Ratchet LN internals
- Tough, reliable SRAM Eagle 90/70 12-speed shifting
- Powerful braking from TRP EVO Pro 4-piston stoppers with 220/203mm rotors
SPECIFICATIONS
- Frame: Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29' FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset
- Fork: Fox Float Factory 36, 160mm travel, Grip X2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
- Rear Shock: Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm
- Rims: DT Swiss XM 1700 Spline, 30mm inner width, TC tubeless ready
- Hubs: (F) DT Swiss 350, 15x110mm / (R) DT Swiss 350 Ratchet System 36 SL, 12x148mm
- Spokes: DT Swiss Competition, straight-pull
- Tires: (F) Maxxis DHF, 29x2.5", 3C, EXO+, tubeless ready / (R) Maxxis Dissector, 27.5x2.4", 3C, EXO+, tubeless ready
- Pedals: Not Included
- Crank: e*thirteen e*spec Helix Race Carbon, 34T
- Bottom Bracket: Null
- Chain: SRAM XO Eagle, T-Type, 12-speed
- Rear Cogs: SRAM XO Eagle, 10-52, T-Type, 12-speed
- Front Derailleur: Null
- Rear Derailleur: SRAM XO Eagle AXS, T-Type
- Shifters: SRAM AXS POD Controller
- Handlebar: HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8degree sweep, 5degree rise, 780mm
- Grips: Cannondale TaperRidge
- Stem: Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0degree
- Headset: Acros Adjustable Angle (1.2degree)
- Brakes: Magura MT7 4-piston hydraulic disc, 203/203mm Storm HC 6-bolt rotors
- Brake Levers: Magura MT7 HCW hydraulic disc
- E-bike Display:
- E-Bike Battery: Custom 601Wh battery
- E-bike Charger:
- E-bike Drive Unit:
- Saddle: Fizik Terra Aidon X3, Mobius Kium alloy rail
- Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)
- Accessories & Extras: Tubeless valves, SRAM AXS charger
