Sku :

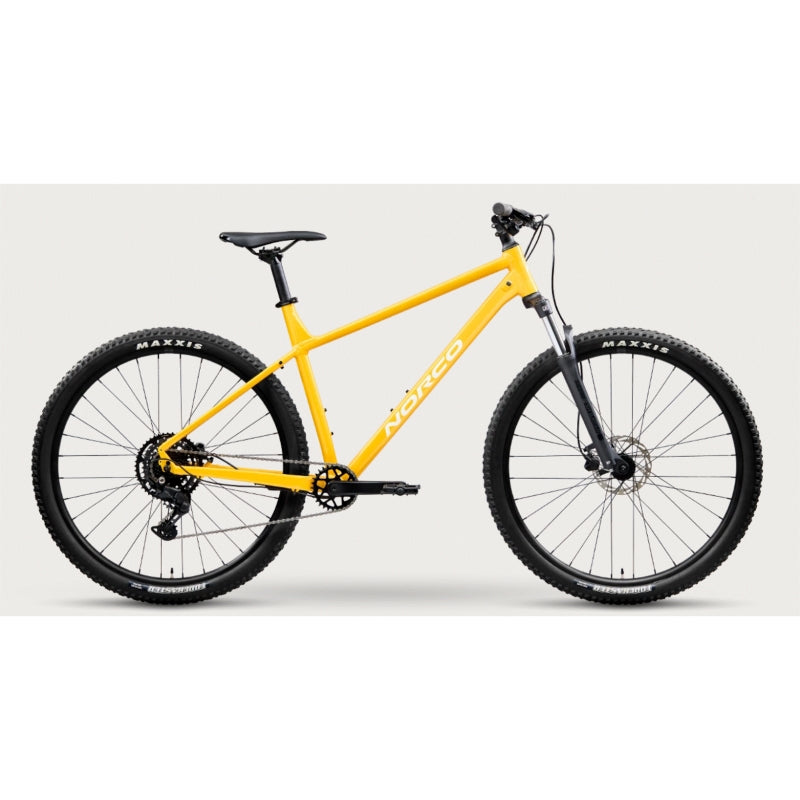

The Storm 120 opens up the world of off-road adventure.
It's built for off-road adventure, but the lightweight aluminum Storm 120 is more than happy to lead a double life on city streets and park paths.
Details
- Progressive design for nimble,confident trail performance.
- The perfect amount of suspension for comfort and control on the trail.
- Mechanical systems protected from the elements.
- Stop on a dime.
- Size-specific wheels optimize the ride.
- Versatile frame features to take you anywhere.
- No Other Way Limited Lifetime Warranty.
Frameset
FrameAluminum, Smooth Welding, 10x135mm QR
ForkSuntour XCT-30 DS Coil, 100mm, 46mm offset, 9x100 QR
Drivetrain
Rear ShifterShimano Cues SL-U4000, 9sp
Rear DerailleurShimano Cues RD-U4000, 9sp, GS
CranksetProwheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom BracketCartridge, ST 73mm, 113mm axle length
CassetteShimano Cues CS-LG300-9, 11-46T, 9sp
ChainKMC Cues XGlide 9/10/11
Brakes
Front BrakeTektro HD-M275, Resin pads
Front Brake RotorTektro. 160mm, 6-bolt
Rear BrakeTektro HD-M275, Resin pads
Rear Brake RotorTektro. 160mm, 6-bolt
Brake LeversTektro HD-M275
Components
Handlebar6061 Alloy DB, 750mm (S) / 780mm (M,L,XL,XXL) 30mm rise
StemAlloy 50mm Length, 31.8mm Clamp
SeatpostAlloy 31.6mm, 300mm (S), 400mm (M/L/XL/XXL) length
HeadsetZero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8"Headset Spacer3x10mm
SaddleNorco XC, Steel Rail
GripsDDK lock-On, 139mm length
PedalsNylon Flat PedalSeatpost ClampNorco Alloy QR, 34.9mm ID
Wheels
Front HubFormula DC-1420 , 9x100mm QR, 32h, 6-bolt
Rear HubFormula DC-1422,10x135mm QR, HG, 32h, 6-bolt
RimsDP 27 Rims, 27mm ID, 32H
Front TireMaxxis Forekaster, 29x2.25" (27.5X2.25"size S), Wire
Rear TireMaxxis Forekaster, 29x2.25" (27.5X2.25"size S), Wire
Spokes/NipplesStainless Steel, 14g
Weight
Weight15.27 kg (33.6 lbs)
Weight SizeL
