Sku :
134186
Regular price
$1,299.00 AUD
Sale price
$1,299.00 AUD
Regular price
Unit price
per
Shipping calculated at checkout.

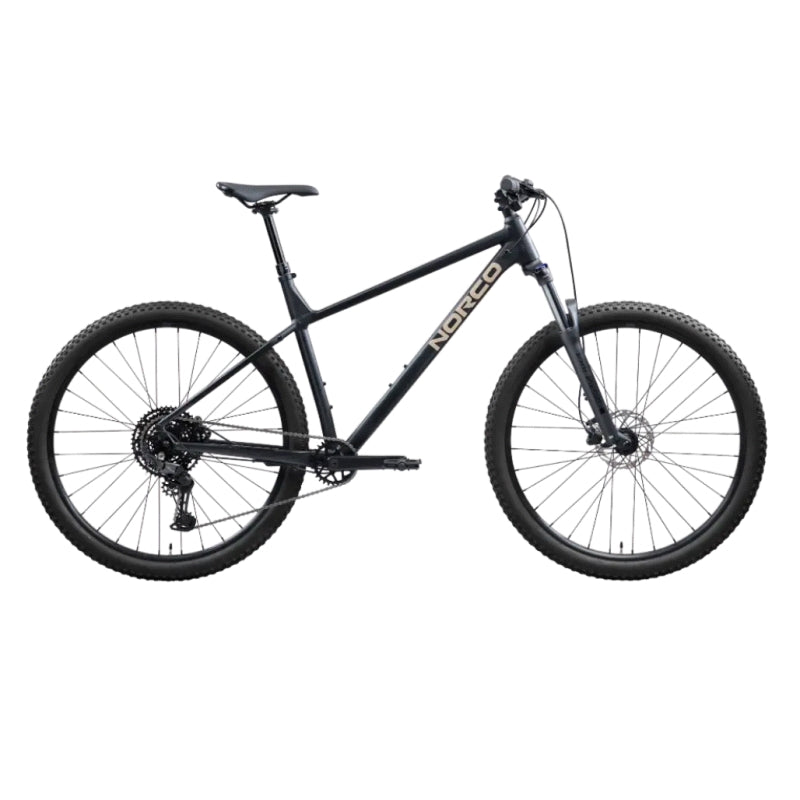

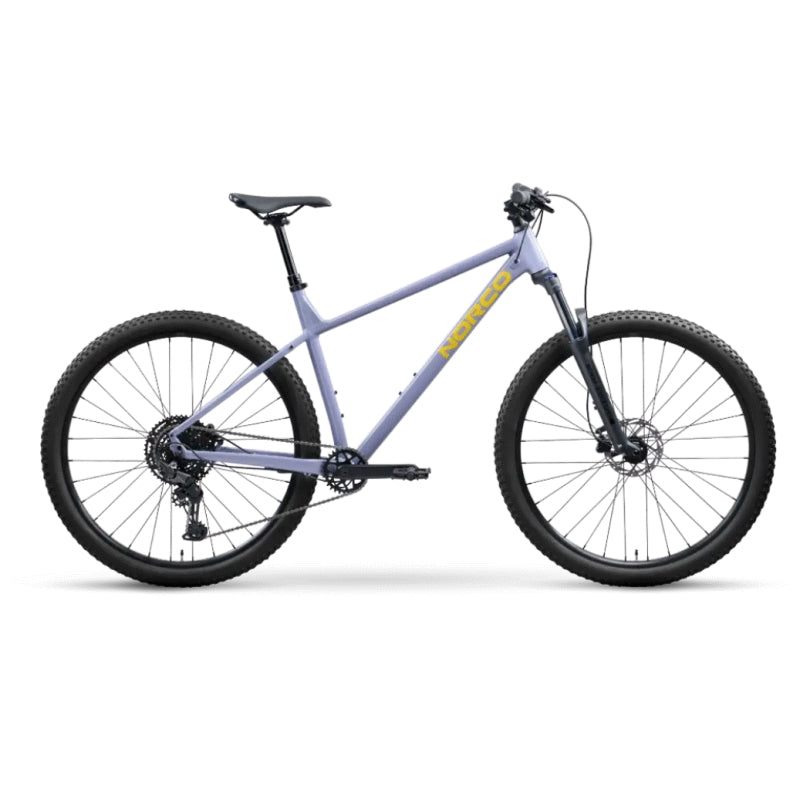

STORM 1
The Storm 1 opens up the world of off-road adventure
With a lightweight aluminum frame with custom tube shapes, a full breadth of frame sizes, rack and fender mounts, and dual water bottle mounts - it's ready to go anywhere, with anyone.
Details
- Progressive design for nimble,�?�confident trail performance.
- The perfect amount of suspension for comfort and control on the trail.
- Mechanical systems protected from the elements.
- Stop on a dime.
- Size-specific wheels optimize the ride.
- Versatile frame features to take you anywhere.
- No Other Way Limited Lifetime Warranty.
Frameset
Frame Aluminum, Smooth Welding, 10x135mm QR, Tapered HT
Fork SR Suntour XCM32LO w/ lockout, 120mm, 46mm offset, 15x110mm Boost
Drivetrain
Rear Shifter Shimano CUES SL-U6000-10R, 10sp
Rear Derailleur Shimano CUES RD-U6000, 10sp, GS
Crankset Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket Cartridge, ST 73mm, 113mm axle length
Cassette Shimano CUES CS-LG300-10, 11-48T, 10sp
Chain KMC XGlide, 10sp
Brakes
Front Brake Shimano BR-MT200, Resin pads
Front Brake Rotor Shimano SM-RT26, 160mm, 6-Bolt
Rear Brake Shimano BR-MT200, Resin pads
Rear Brake Rotor Shimano SM-RT26, 160mm, 6-Bolt
Brake Levers Shimano BL-MT200
Components
Handlebar Norco Aluminum, 740mm (S-M) 760mm (L-XXL), 20mm Rise
Stem Alloy 50mm Length, 31.8mm Clamp
Seatpost X-Fusion Manic LC, 31.6mm, 100mm (S), 125mm (M-XXL)
Headset Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Saddle Norco XC, Steel Rail
Grips Norco lock-On, 130mm length
Pedals Nylon Flat Pedal, Chromoly Axle
Seatpost Clamp Norco Alloy Nutted Clamp, 34.9mm ID
Wheels
Front Hub Formula DC-221T, 15x100mm TA, 28h, 6-bolt
Rear Hub Formula DC-1422,10x135mm QR, HG, 32h, 6-bolt
Rims Alloy XD-155, 32H
Front Tire CY Trail, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
Rear Tire CY Trail, 29x2.25" (M-XXL) 27.5"x2.25 (S), Wire
Spokes/Nipples Stainless Steel 14g - Black
