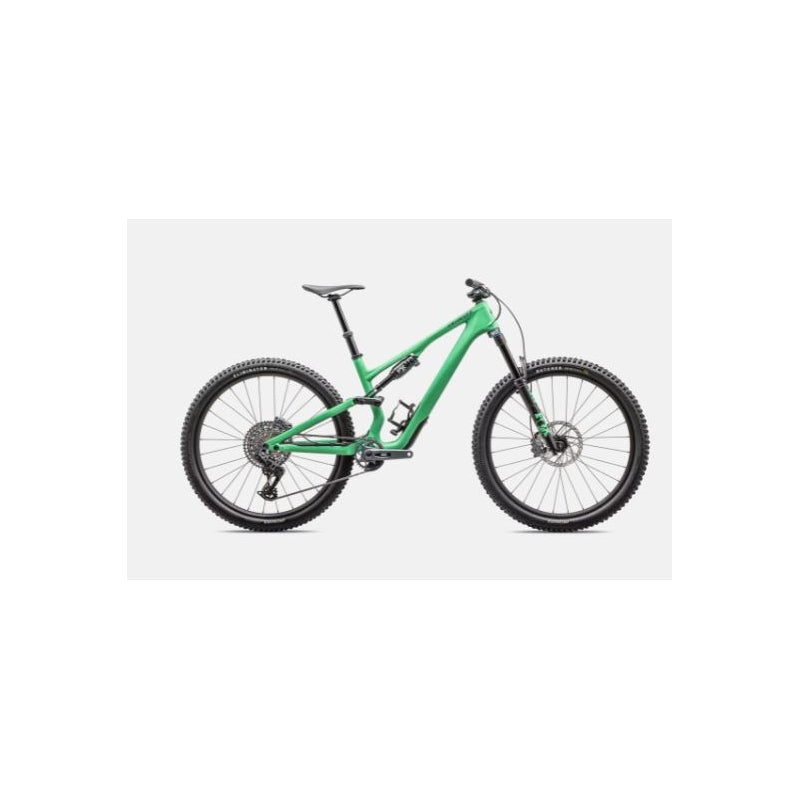

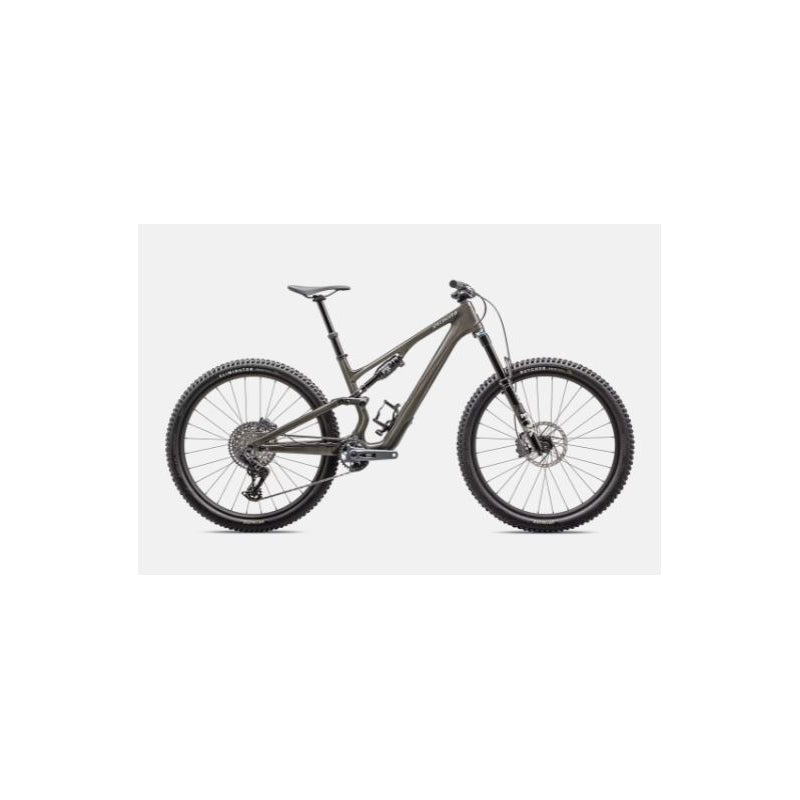

2025 STUMPJUMPER EXPERT 15 (S1-S2 - 29/27.5 WHEELS, S3-S6 - 29 WHEELS)
Specifications
FRAMESET
SWAT SWAT 4.0 internal downtube storage
Frame FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Seat Binder Alloy, 38.6mm
SUSPENSION
Fork FOX FLOAT 36 Performance Elite, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, S1:140mm of travel, S2-S6:150mm of travel
Rear Shock FOX FLOAT Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm
COCKPIT
Stem Alloy Trail Stem, 35mm bar bore
Saddle Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm
Grips Deity Lockjaw
Handlebars Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S4: 800 width, 30mm rise: S5-S6: 800 width, 40mm rise
SeatPost PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm
BRAKES
Front Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Rear Brake SRAM Maven Bronze, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 200mm HS2 Rotor
DRIVETRAIN
Chain
SRAM GX Eagle Transmission Flattop Chain
Cassette SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Bottom Bracket SRAM DUB, BSA 73mm Wide, Threaded
Shift Levers SRAM AXS POD Controller
Crankset SRAM GX Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm
Rear Derailleur SRAM GX Eagle Transmission Derailleur
WHEELS & TIRES
Rims Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: S1-S2: 27.5, S3- S6: 29
Front Hub
DT Swiss 370, 15x110mm, 28h
Front Tire Butcher, GRID TRAIL casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"
Rear Hub DT Swiss 370, 12x148mm, 28h
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, S1-S2: 27.5x2.3, S3- S6: 29x2.3"
Spokes Sapim Force
Inner Tubes Standard, Presta valve
PRODUCT DETAILS
WEIGHT
Weight 14.47kg (31 lb, 14.4 oz)
Weight Size S4
