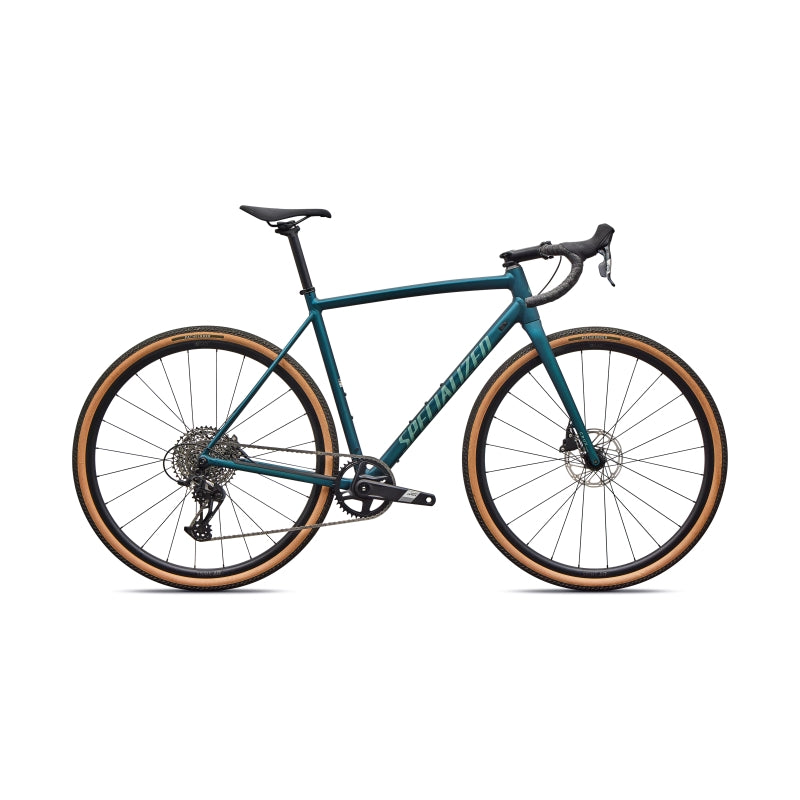

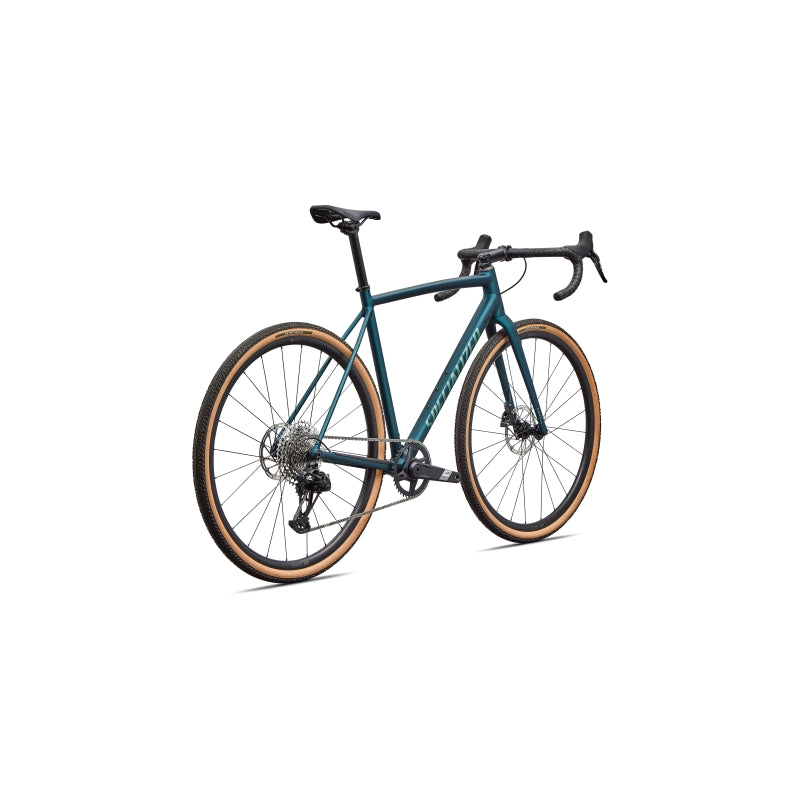

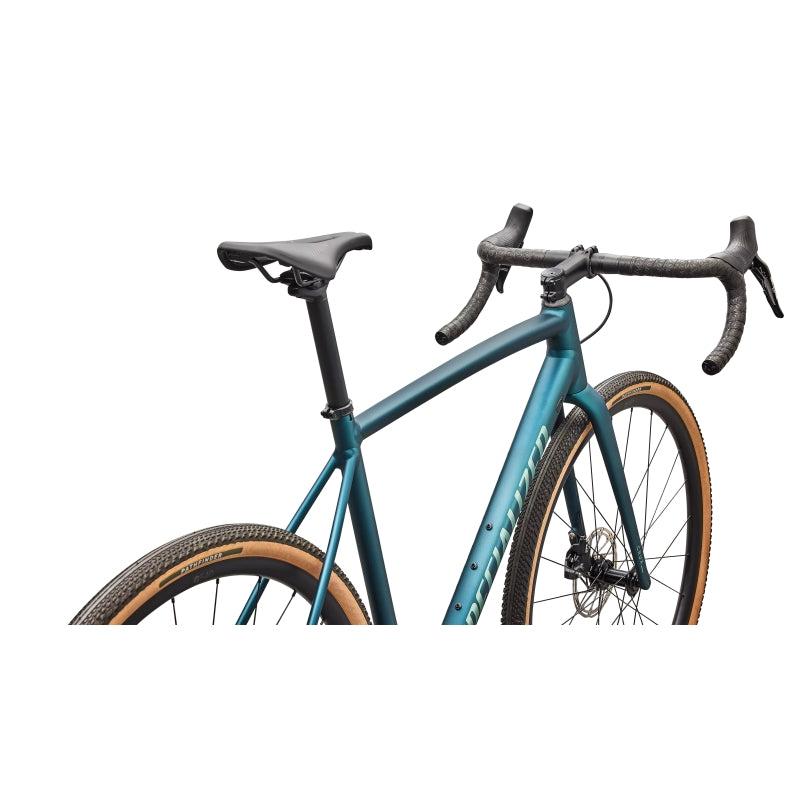

Specialized 2026 Crux Dsw Comp

The Crux DSW is more than the lightest alloy gravel bike ever made. We took everything we learned creating the carbon Crux and used our patented D Aluisio Smartweld to make it a reality in alloy. We ve created the most capable, nimble, balanced, and responsive alloy gravel bike ever made for fast, fun, high-performance riding. And yeah, it s the lightest too. Some may call it a carbon copy, but we call it the Crux DSW. Lightest Weight At just 1399 grams*, the Crux DSW is the lightest alloy gravel frame in the world. Combine that with our Fact12r Crux carbon fork and a build curated for performance, and a complete Crux DSW tips the scales at 9.37kg no alloy gravel bike can compete. *56cm in the lightest colorway. Production frames will vary.
Most Capable More clearance means more capability that s why the Crux DSW has the same tire clearance as its carbon sibling 47mm and up to 2.1 on a 650b wheel. Combine this with the tough and light alloy frame, and Crux DSW can take you anywhere you imagine at full gas. Ultra-Responsive Responsive at the pedals. Supple in the saddle. We ve used D Aluisio Smartweld to fine-tune the properties of alloy to deliver a ride previously impossible without carbon and combine it with the same performance gravel geometry and race-influenced fit as the carbon Crux. A longer reach delivers better weight distribution for quick, confident handling, while a lower stack creates a performance first position. At 72mm of bottom-bracket drop, we hit the sweet spot between nimble and stable. D Aluisio Smartweld D Aluisio Smartweld - or DSW - is a patented engineering process that uses hydroforming to precisely match tube-to-tube joints for better, stronger welds and, ultimately, a lighter frame that can be twice as durable as a traditional alloy frame. Our Smartweld technique helps us create a unique single-piece downtube and bottom bracket for the Crux, shaving weight and amplifying responsiveness. Lightest: 1399g Crux DSW Frame (raw, unpainted). We took everything we learned creating the carbon Crux and used our patented D Aluisio Smartweld to make it a reality in alloy. *56cm in the lightest colorway. Production frames will vary.

Capable: 47c/650b x 2.1 tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine.

Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux s iconic history in cross.

Technical Specifications:
- Bottom Bracket: SRAM DUB BSA 68 Wide
- Cassette: SRAM APEX XPLR, 12sp, 11-44T
- Chain: SRAM Apex D1
- Crankset: SRAM Apex DUB Wide, 40t
- Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
- Frame: Specialized E5 Premium Aluminum Disc frame with D''''Aluisio Smartweld Technology, hydroformed aluminum tubing, tapered head tube, threaded BB, UDH dropout
- Front Brake: SRAM Apex, Hydraulic Disc
- Front Tire: Pathfinder 700x40, Tubeless Ready
- Front Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

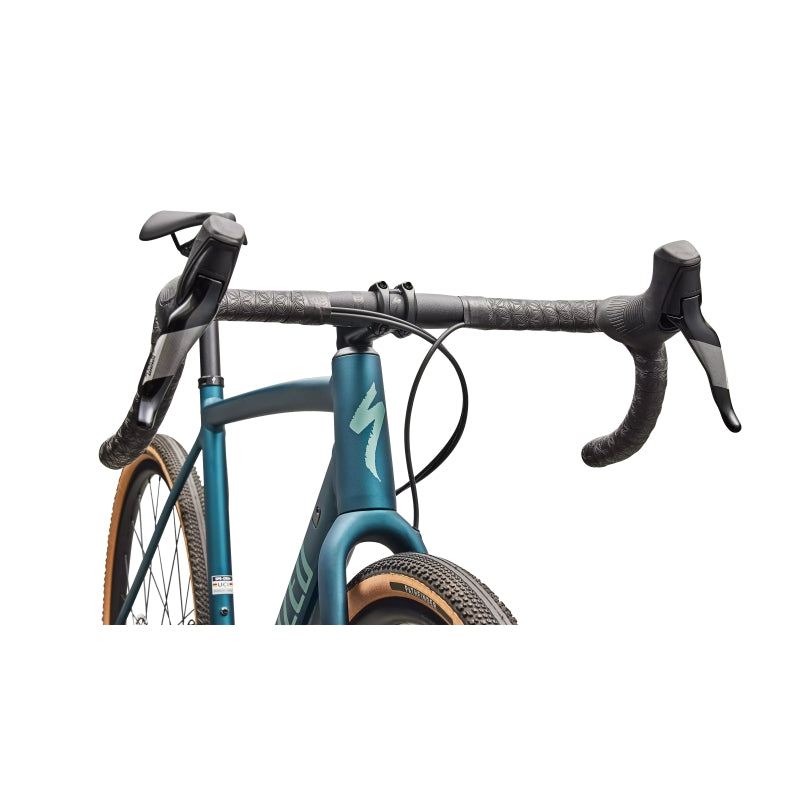

- Handlebars: Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12 flare
- Tubes: Presta, 700X32-50mm
- Rear Brake: SRAM Apex, Hydraulic Disc
- Rear Derailleur: SRAM Apex XPLR, mechanical, 12-speed
- Rear Tire: Pathfinder 700x40, Tubeless Ready
- Rear Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Saddle: Body Geometry Power Sport, steel rails
- Seat Binder: Specialized Alloy, 30.8mm
- Seat Post: Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
- Stem: Specialized, 3D-forged
