Sku :
129058
Vendor:
Specialized Bolt Kit MY23 Levo SL (GEN.2) Carbon Frame Suspension Pivot Bolt Kit (w/ Pivot Spacers and Horst Pivot Geo Adjust Kit
Specialized Bolt Kit MY23 Levo SL (GEN.2) Carbon Frame Suspension Pivot Bolt Kit (w/ Pivot Spacers and Horst Pivot Geo Adjust Kit
Regular price
$200.00 AUD
Sale price
$200.00 AUD
Regular price
Unit price
per
Shipping calculated at checkout.
Product Details

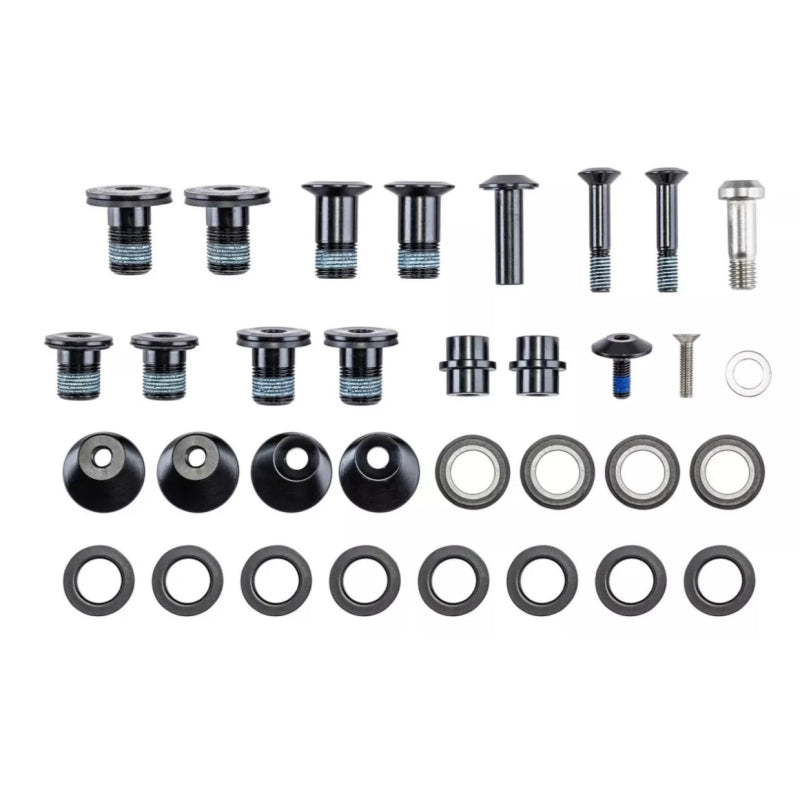

Suspension pivot bolt kit for 2023 Levo SL (Gen.2) Carbon bikes with all bolts and spacers
- Main Pivot Bolt Driveside: Reverse Thread - 12mm W x 20mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 1 pcs.
- Main Pivot Bolt Non-Driveside: 12mm W x 20mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 1 pcs.
- Shock Link to Seat Tube Pivot Bolt: 12mm x 17mm L - Alloy - Torque: 180 in-lbf (20 Nm) - 2 pcs.
- Shock Link to Shock Extension Pivot Bolt: 12mm W x 14mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 2 pcs.
- Shock Link to Seatstay Pivot Bolt: 12mm x 27mm - Alloy - Torque: 180 in-lbf (20 Nm) - 2 pcs.
- Horst Link Pivot Bolt: 6mm W x 32mm L - Steel - Torque: 90 in-lbf (10 Nm) - 2 pcs.
- Forward Shock Eye Axle: 8mm W x 26.5mm L - Steel - 1 pcs.
- Forward Shock Eye Bolt: 8mm W (M5 Thread) x 11mm L - Steel - Torque: 49 in-lbf (5.5 Nm) - 1 pcs.
- Rear Shock Eye Bolt: 8mm W x 28mm L - Steel - Torque 180 in-lbf (20 Nm) - 1 pcs.
- This kit also includes Geo Adjust Flip Chip and all Spacers. Refer to Schematic for detail.
