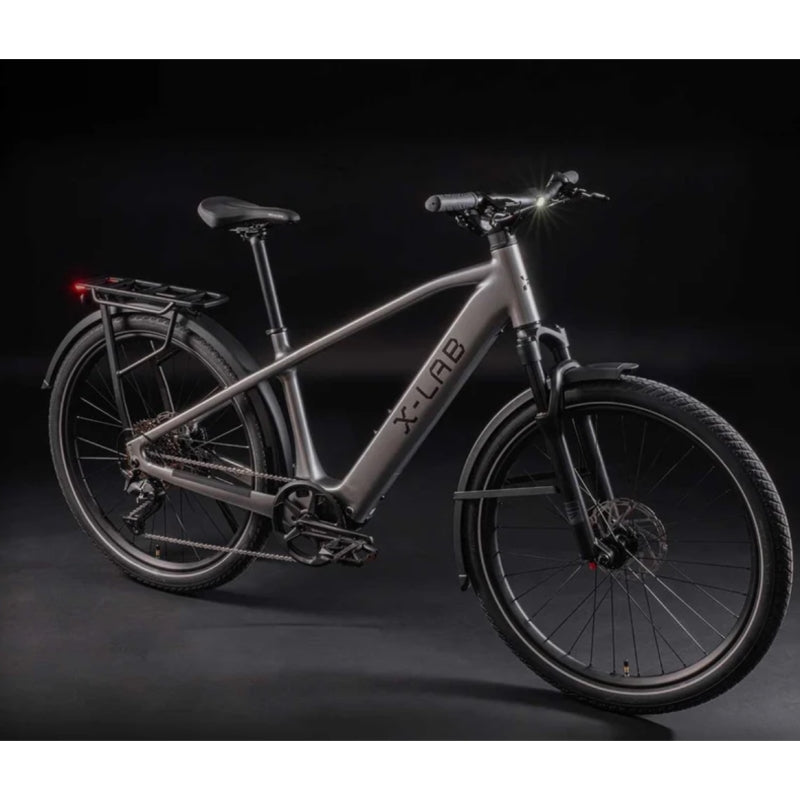

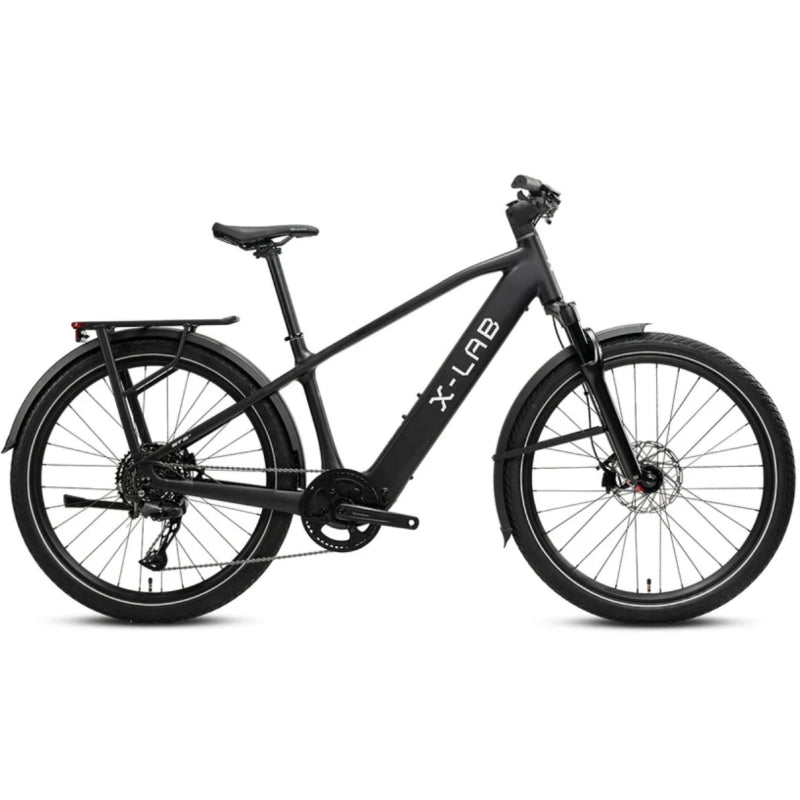

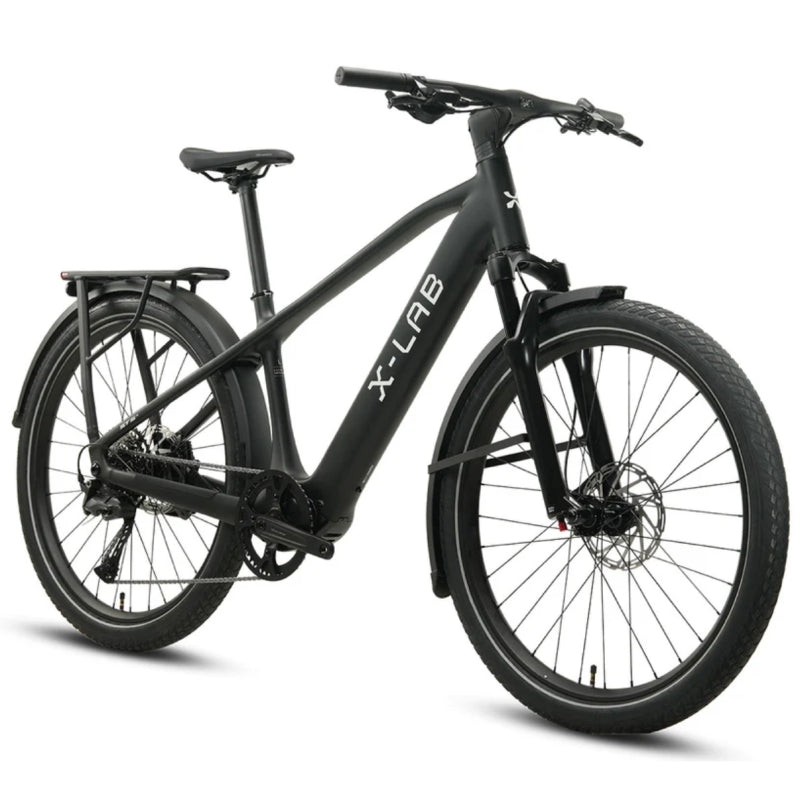

X-lab 2027 ST5+ E-bike (due Nov/Dec)

FRAME
XDS X6 Alloy Frame, UDH Compatible
FORK
XDS Suspension Fork, Coil Spring, 80mm Travel,
110x15mm Thru-axle
HANDLEBAR / STEM
Branta Alloy Integrated, w/ Display & Front light, 680mm
Width, 90mm Length, 6 Degree Rise, 15 Degree Backsweep
SEATPOST
XDS 31.6mm Alloy Seatpost , 350mm Length
REAR DERAILLEUR
Shimano Cues RD-U4000, 9-Speed
SHIFTER
Shimano Cues 9-Speed
BRAKES
Branta EC4D Hydraulic E-Bike Brake, w/ Cutoff Switch,
3 Finger Lever, 4 Piston Caliper
CASSETTE
Shimano CS-LG300 11-46T, 9-Speed
CRANKSET
Branta Alloy Crankset, 46T, Narrow-wide Teeth

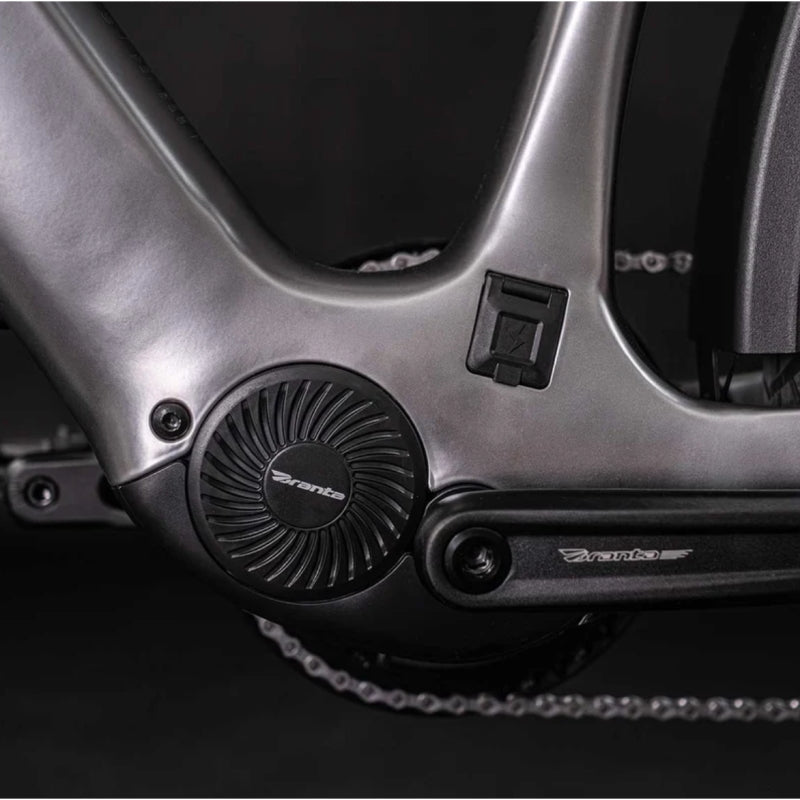

MOTOR
XDS Mid-drive X800 Motor, 250 Watt Continuous Rated
Power, 470 Watt Peak Power, 95Nm Peak Torque, Dual-sided Torque Sensor
BATTERY
XDS Rechargeable Li-ion Battery, 619Wh, LG Battery Cells, 3A Charger (0-100% 5hr)
LIGHTS
Integrated F+R Lights (+ Brake Lights)
SPEED
Pedal-assist and Throttle, Class 2 20mph (Unlock to Class 3 via the X-Lab Bikes Mobile App)
RANGE
Ride up to 75 miles on a Single Charge
TESTING AND COMPLIANCE
UL2271 and UL2849 Certified, Ingress Ratings: Complete Bike IP54, Battery IPX7, Motor and Other Electronics IPX6
LOAD CAPACITY
Max Load 330 lbs (150 kg)
CONNECTIVITY
Apple Find My Anti-Theft Technology, Bluetooth, OTA Updates
ROTORS
Branta PN28, F:180mm R:180mm
CHAIN
KMC E-GLIDE-S
WHEELSET
Branta Alloy E-Bike Wheelset
TIRES
CST CTC-06, 27.5''x2.4, 30TPI, w/ Reflective Stripe
Max Tire Clearance: 2.4"
SADDLE
Branta C301
PHONE HOLDER
Quad Lock Mount
REAR RACK
MIK-HD Rack
WEIGHT
24.76 kg / 54.58 lbs (Size L)
SIZE OPTIONS
M / L
