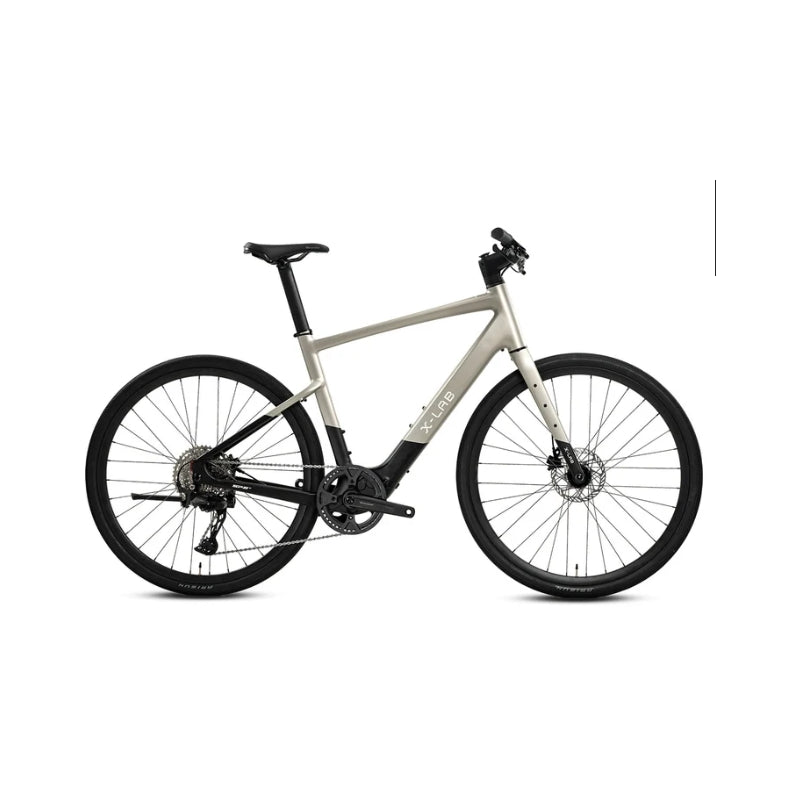

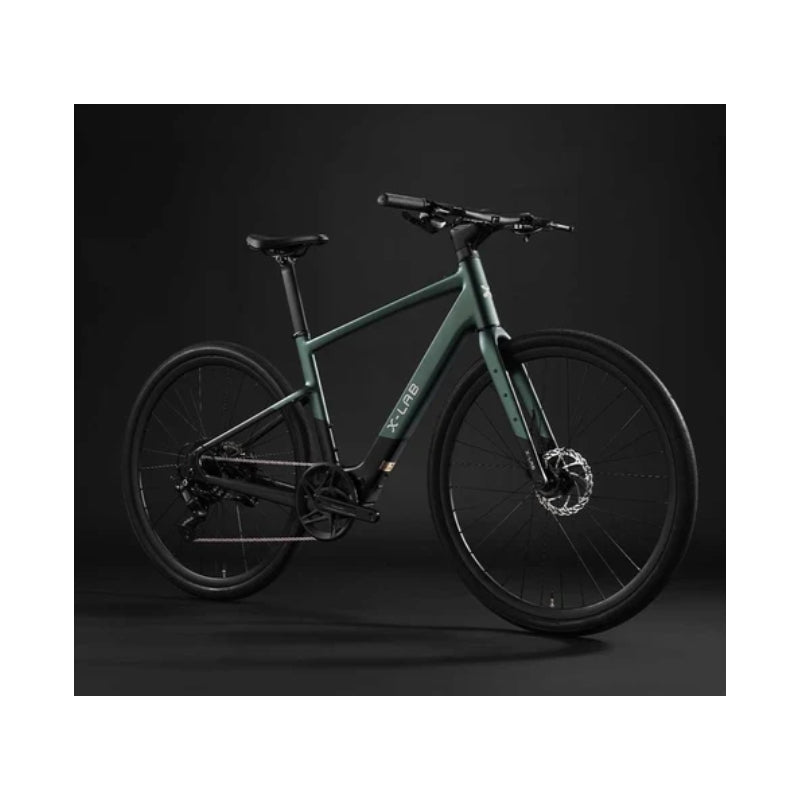

X-lab Bikes 2027 SP5+ Commuter E-bike

FRAME

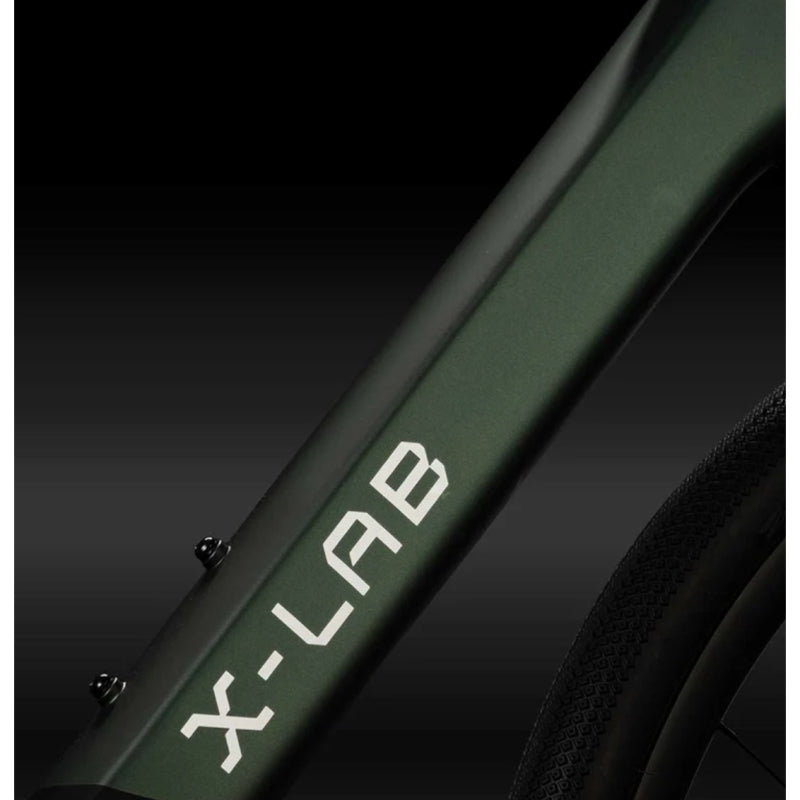

XDS X6 Alloy Frame, UDH Compatible
FORK
XDS Carbon Fork, 100x12mm Thru-axle
HANDLEBAR / STEM
Branta Alloy Integrated, w/ Display & Front Light, 680mm
Width, 90mm Length, 6 Degree Rise, 9 Degree Backsweep
SEATPOST
XDS Alloy Seatpost, Aero Shape, 350mm Length
REAR DERAILLEUR
Shimano Cues RD-U4000, 9-Speed
SHIFTER
Shimano Cues 9-Speed
BRAKES
Branta EC215D Hydraulic E-Bike Brake, w/ Cutoff Switch,
3 Finger Lever, 2 Piston Caliper
CASSETTE
Shimano CS-LG300 11-46T, 9-Speed
CRANKSET
Branta Alloy Crankset, 46T, Narrow-wide Teeth
MOTOR
XDS Mid-drive X800 Motor, 250 Watt Continuous Rated Power, 400 Watt Peak Power, 85Nm Peak Torque, Dual-sided Torque Sensor
BATTERY
XDS Rechargeable Li-ion Battery, 339Wh, LG Battery Cells, 3A Charger (0-100% 3hr 15min)
LIGHTS
Integrated F+R Lights (+ Brake Lights)
SPEED
Pedal-assist and Throttle, Class 2 20mph (Unlock to Class 3 via the X-Lab Bikes Mobile App)
RANGE
Ride up to 43 miles on a Single Charge
TESTING AND COMPLIANCE
UL2271 and UL2849 Certified, Ingress Ratings: Complete Bike IP54, Battery IPX7, Motor and Other Electronics IPX6
LOAD CAPACITY
Max Load 265 lbs (120 kg)
CONNECTIVITY
Apple Find My Anti-Theft Technology, Bluetooth, OTA Updates
ROTORS
Branta Z8, F:160mm R:160mm
CHAIN
KMC E-GLIDE-S
WHEELSET
Branta Alloy E-Bike Wheelset
TIRES
Branta R240, 700x40C, 30TPI
Max Tire Clearance: 45C w/ Full-Wrapped Fender
SADDLE
Branta SRX+
PHONE HOLDER
Quad Lock Mount
WEIGHT
16.79 kg / 37.01 lbs (Size L)
SIZE OPTIONS
S / M / L
